Ceramic pipe elbows with a steel jacket

  • Ideal for pneumatic conveying and for use with highly abrasive media
Keramische Rohrbögen mit Stahlmantel – Verschleißschutz für abrasive Medien

Ceramic-lined pipe elbows for highly abrasive media

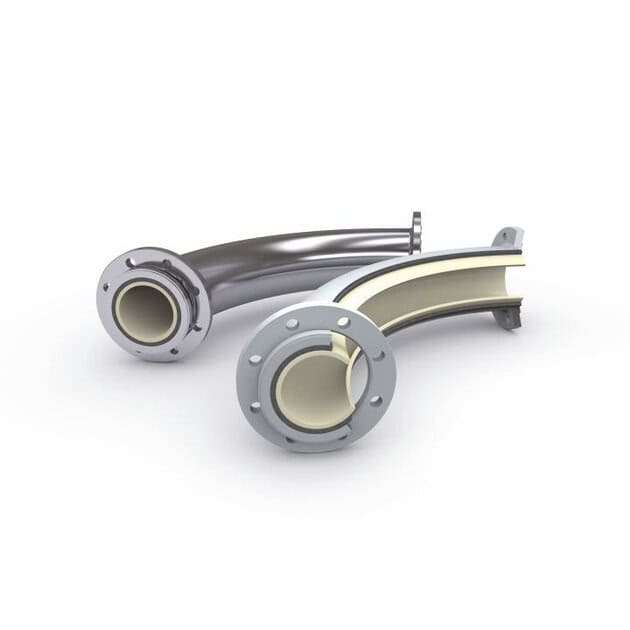

The ceramic-lined pipe bends are used in highly abrasive media. A monolithically curved ceramic segment is inserted into a steel jacket with appropriate flange connections. The gap between the steel jacket and the ceramic is filled with a heat-resistant putty, which has a damping effect.The use of high-quality engineering ceramics and appropriate radius sizing ensures optimal wear protection.

Inquire now »

Options

  • Leg extension (single-sided and double-sided)
  • Kamlok and Storz couplings; milk pipe fittings; clamps; etc.
  • Nominal diameter increments
  • Wall Thickness Monitoring
  • Electrically conductive ceramic (silicon carbide)
  • Oil- and grease-free version (oxygen)
  • Lance design
  • Other materials for steel jackets available upon request
  • High-temperature versions with internal insulation
  • Cement as a bonding agent
  • PUR, silicone as a sealant
  • HT putty as a sealing material

Because the ceramic material is thin-walled, the pipe elbows can be manufactured to match the nominal diameter. This means that the ceramic pipe elbows can be retrofitted into existing systems without the need for piping modifications. Radii can be adjusted using appropriate leg extensions.

Precision for complex geometries

Ceramics allow highly precise, complex shapes – ideal for demanding applications and customized solutions.

Extreme resilience

Outstanding resistance to abrasion, corrosion, and high temperatures – for long-lasting components and less deterioration.

Application expertise

From concept to integration – CERA SYSTEM provides support with its in-depth understanding of processes and technical expertise.

Suitable for your application too?

Areas of application

Pneumatic conveyance of:

  • Fly ash in power plants and waste-to-energy facilities
  • Titanium Oxide/Iron Oxide in Pigment Production
  • Ores (e.g., copper) in mining
  • Rutilite (blast furnace), sinter dust (sintering plants), coal dust (EAF+PCI), lime + magnesium (pig iron desulfurization), substitute fuels in steel mills and blast furnace operations
  • Molding sand in foundries
  • Glass shards in glassworks
  • Mineral Animal Feed in the Feed Industry
  • Abrasives in the wood industry
  • Clinker dust, lime, cement, slag sand, and fly ash in cement plants

Replacement for deflection pots:

  • Pipe bends with small radii (4D, 6D, R250)
Inquire now »
