Ball Valve KST

  • Ideal for control valves in steelworks, chemical, and pulp industries
KST‑Kugelhahn – Keramisch ausgekleidet für abrasive & korrosive Medien

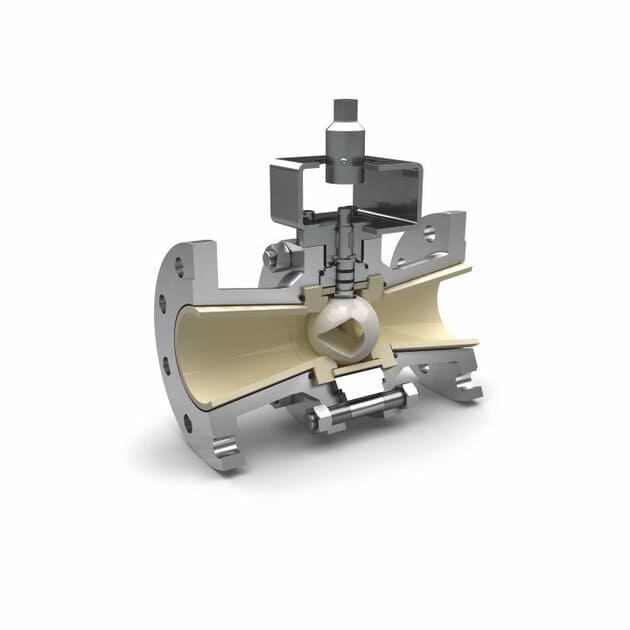

KST ball valve for abrasive and corrosive media

The KST valve is a ceramic-lined ball valve for on/off functions and control tasks for use in highly abrasive and corrosive media, preferably for applications with special requirements for the stem seal, the body materials (PVDF, titanium), or for very high and very low operating temperatures and high pressures.

Inquire now »

Options

  • all metallic materials for the housing
  • Plastic housing (e.g. PP or PVDF)
  • Fire-safe design
  • TA Air Quality Standard design
  • high temperature design »
  • Wafer-type
  • Chemistry design (KSC type)

The functional principle is based on the floating ball. The seat rings are fixed. The ball has a defined ball clearance and is pressed into the outlet seat by the differential pressure, thereby sealing it. The swivel movement of the ball between 0 and 90° releases a precisely defined opening cross-section. The geometric shape of the ball passage determines the function and control characteristics. The ball valve has a three-part design. This allows adjustments to existing pipelines and optimisation of the flow and control characteristics. The valves are supplied with a hand lever or gear as well as with a pneumatic, electric, or hydraulic actuator. The actuator is attached using an adapter and bridge. All commercially available actuators can be used as rotary actuators. Special connections are possible.

Precision for complex geometries

Ceramics allow highly precise, complex shapes – ideal for demanding applications and customized solutions.

Extreme resilience

Outstanding resistance to abrasion, corrosion, and high temperatures – for long-lasting components and less deterioration.

Application expertise

From concept to integration – CERA SYSTEM provides support with its in-depth understanding of processes and technical expertise.

Suitable for your application too?

Areas of application

Steelworks:

  • Control valve for pulverized coal injection (PCI)
  • Relief valve for coal silo
  • Dosage of additives in electric arc furnaces (EAF), e.g., coal powder
  • Pig iron desulfurization with CaC, SiO₂, MgO₂, etc.
  • Slag binding with quartz sand

Paper & pulp:

  • Control valve for lime sludge
  • Control valve for kaolin, talc, pulp with wood residues

Chemistry (with PVDF housing):

  • Solid-containing media with a low pH value
Inquire now »
